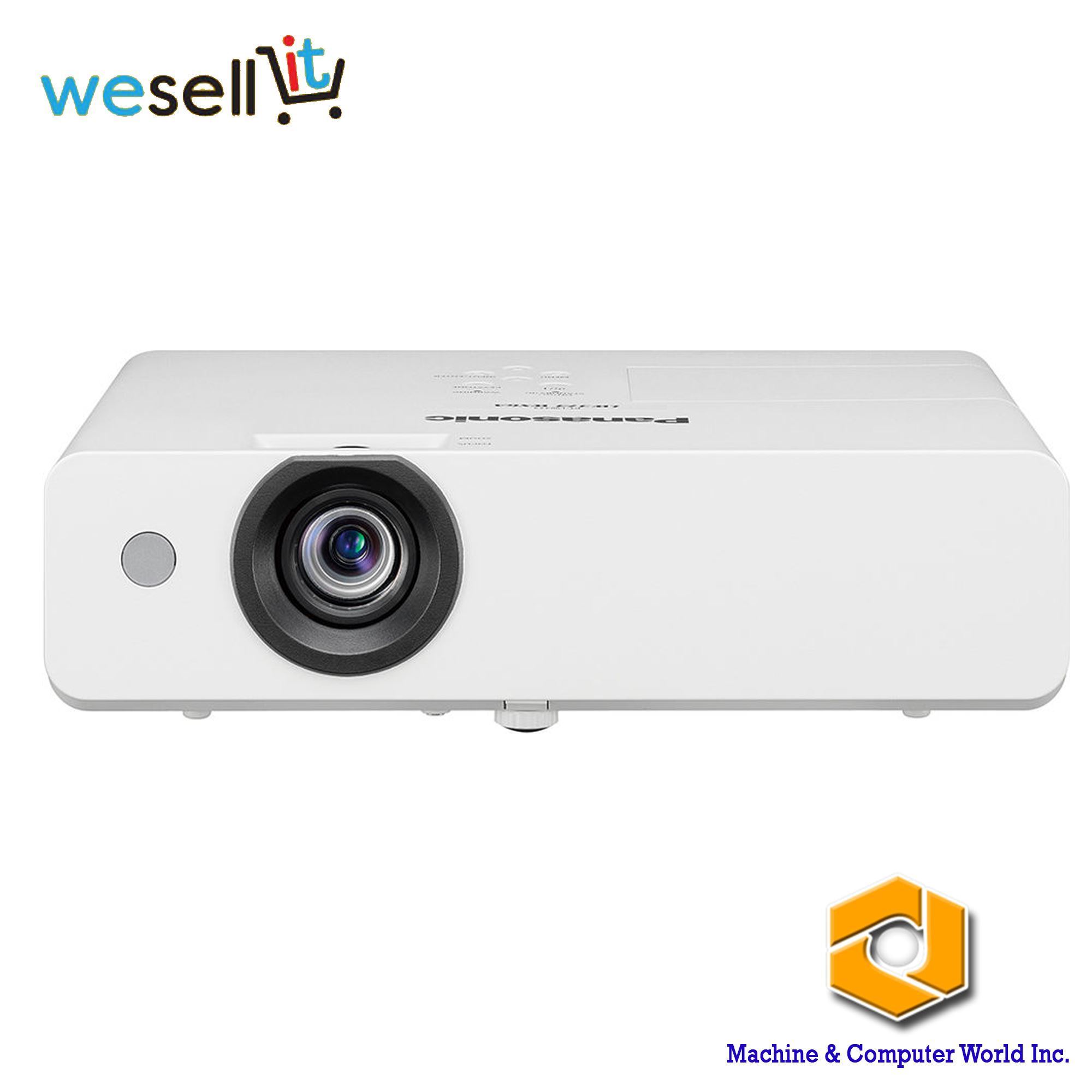

BRILLIANT PERFORMANCE IN A COMPACT BODY
HIgh Brightness and Contrast for Clear, Comfortable Viewing
Power and intelligence combine in a compact and lightweight body for brightness ranging from 3.100 lm to 4.100 lm*3 highest - ever 16,000 : 1 contrast ratio, resulting in easy - to see pictures that resist washout.
Lower Maintenance Reduces TCO
Select a lamp power mode to suit your presentation style and efficiency requirements to achieve hig performance at lower cost. lamp and filter replacement timing *4 is the same in any mode, streamlining maintenance.
Lamp Mode / Replacement cycle of lamp / Replacement cyclee of Air Filters
Eco2 10,000 hours 10,000 hours
Eco1 6,000 hours 6,000 hours
Normal 5,000 hours 5,000 hours
Bright Pictures in Artificial Light
Daylight View Life uses sensor information to optimize color and brightness according to ambient lighting levels. This function is easily accessed using the supplied remote control.
Quit 28 dB*6 Operation for Distraction - free Viewing
Operating noise is low as 28 db*, reducing the chance of distraction during presentation or quiet video scenes.
EASY SETRUP AND MANAGEMENT
Corner Keystone Correction for Angles Projection
If on -site condition require off- center projection , simply designate four screen corners and Horizontal *5 & Vertical Corner Keystone Correction performs necessary adjustments for a distortion - free image.
Curved Screen Correction
Barrel and pincushion distortions are easily corrected when projectiong onto a curved screen surface.
1.2x Zoom Versatility
The PT- LB353 Series includes a 1.2x zoom lens to support a Wide range of Projection Throw - distances . This is usefel when presenting in rooms of diffrent sizes.
Simple Lamp and Filter Replacement
Lamp and filter are accessed via panels in the top and side of the projector. Periodic maintenance takes moments even with the unit attached to a ceiling - mount bracket.
Multi - Projector Monitoring Capability
In fixed intsallations, Multi Monitoring and control Software makes management of multiple projectors easy from a single PC. Wired LAN supports PJlink™ protocol, while serial port is RS - 232C- compatible for remote control
Practical Features Simply Daily Usage
Project wirelessly with Oprtional Module : Project media wirelessly via PC using Presenter light or a compatible third - party application for iOS and Android ™devices. Just connect the oprional T - WML100 Wireless Module to the projector's USB input.
Presenter Light Ver. 1.0 for Windows ® PC's
· Supports images, video , and documents such as PDF and PowerPoint®
· Mirrors PC screen on the big screen
· Project media froem up to four PCs Simultaneously in Split Screen Mode
Memory Viewer Function
Insert a USB memory device into USB port and start projecting content straight away without need od a connected PC.
USB Display Function Projects Media Over USB Cable
Transmission of audio - video content via PC to the projector isw supported over USB cable with an included USB display Mode. * Audio transmission not supported with Mac OS.
HDMI and PC Inputs
Transmit Full HD Video and Graphics using HDMI terminal, or either of two D -sub HD Terminals * for peronal computer. A PC monitor output is also included.
· Built - in 10 W*5 speaker
· Built - in closed - caption decoder
· Projector identification system for up to six projectors
· Blackboard modes for colored screen surfaces
· Configurable start- up logo
· Equipped with a security bar for theft preventation
· Support PJlinks™ Protocol PJLinks
· Direct Power Off
ECO FRIENDLY DESIGN
· No halogenated flame - retardants used in cabinet
· Lead - free lens glass
· Coating - free cabinet for recycling and end of life
· Switchable lamp mode conserves energy
Power supply : AC100–240V 3.5A 50/60 Hz
Power consumption : 300W
Panel sizel : 15.0 mm (0.59 inches) diagonal (16:10 aspect ratio)
Display method : Transparent LCD panel (× 3, R/G/B)
Drive method : Active matrix method
Pixels : 1,024,000 (1,280 × 800) × 3, total of 3,072,000 pixels
Pixel configuration : Stripe
Lens : Manual zoom (1.2×), manual focus F 1.6– 1.76, f 19.16– 23.02 mm
Throw ratio : 1.48– 1.78:1
Lamp : 230 W UHM lamp
Lamp/Filter*2 Replacement Cycle : Normal: 5,000hrs / Eco1: 6,000hrs / Eco2: 1 0,000hrs
Screen size : 30–300 inches (0.76 –7.62 m) diagonally, 4:3 aspect ratio
Colors : Full color (16,777,216 colors)
Brightness*3 : 3800 lumens (lamp power: normal)
Center-to-corner uniformity*3 : 80%
Contrast*3 : 16,000:1 (all white/all black, Image mode:Dynamic,Lamp control: Normal, Iris: On)
Resolution : 1280 x 800 pixel (input signals that exceed this resolution will be converted to 1,280 x 800 pixels
Optical axis shift : 13:1 (fixed)
Keystone correction range : Vertical: ±30°, horizontal: ±15°
Installation : Ceiling/floor, front/rear (menu selection)
Built-in speaker : Output power : 10 W (monaural) × 1
HDMI IN : HDMI 19-pin × 1, HDCP and Deep Color compatible Audio signal: linear PCM, sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER (RGB) 1 IN R, G, B : D-sub HD 15-pin (female) × 1 , R, G, B: 0.7 Vp-p, 75 ohms
Y, PB (CB), PR (CR) : Y: 1.0 Vp-p (including sync signal), 75 ohms , PB (CB), PR (CR): 0.7 Vp-p, 75 ohms
S-VIDEO : Y: Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms NOTE: D-Sub -S video conversion cable (ET-ADSV) is required.
COMPUTER (RGB) 2 IN R, G, B : D-sub HD 15-pin (female) × 1 R, G, B: 0.7 Vp-p, 75 ohms;
MONITOR OUT : D-sub HD 15-pin (female) × 1
R, G, B : R, G, B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: TTL ( possitive/ negativepolarity compatible)
VIDEO IN : Pin jack × 1, 1.0 Vp-p, 75 ohms
AUDIO IN 1 : M3 (L, R) × 1, 0.5 Vrms
AUDIO IN 2 : Pin jack × 2 (L, R x 1), 0.5 Vrms
AUDIO OUT : M3 (L, R) × 1 (monitor out: 0– 2.0 Vrms, variable)
SERIAL IN : D-sub 9-pin (female) × 1, for external control (RS-232C compliant)
LAN : RJ-45 × 1, for network connection, compliant with PJLinkTM,100Base-TX/10Base-T
USB : USB A (type A) connector × 1,+for Memory Viewer/Wireless Module (Out put 5V MAX 500mA)
USB B (type B) connector × 1, for USB Display
Power cord length : 1.8 m (5 ft 11 in)
Cabinet materials : Molded plastic
Dimensions (W × H × D) : 335 × 96*4 × 252 mm (13-3/16 × 3-25/32*4 × 9-29/32 inches)
Weight*5 : Approx. 2.9 kg (6.4 lbs)
Operation noise*3 : 37 dB (Lamp power: Normal), 33 dB (Lamp power: Eco1) 28 dB (Lamp power: Eco2)
Operating temperature : 5°C–40°C (41°F–1 04°F) [at less than 1,400 m (4,593 ft.) ;[High land]:[off] 5°C–35°C (41 °F–95°F) [at 1,400 m to 2,700 m (4,593 ft. to 8,858 ft.);[High land]:[on 1] 5°C–30°C (41 °F–86°F) [at 2,700 m to 3,000 m (8,858 ft. to 9,843 ft.);[High land]:[on 2]
Operating humidity : 20%–80% (no condensation)
Remote control unit
Power supply : 3 V DC (R03/LR03/AAA type battery × 2)
Operation range*6 : Approx. 5 m (16 ft 5 in) when operated from directly in front of the signal receptor
Dimensions (W × H × D) : 44 × 105 × 20.5 mm (1-23/32 × 4-1/8 × 13/16 inches)
Weight : Approx. 63 g (2.22 oz) (including batteries)
Supplied accessories : Power cord (Number and size of cords depends on region) Wireless remote control unit (× 1)
Batteries for remote control (R03/LR03/AAA type × 2) Computer signal cable[VGA cable] 1.5 m [4 ft 11 in] (× 1) Software CD-ROM (Instruction Manual, Multi Monitoring and Control Software) (× 1)
