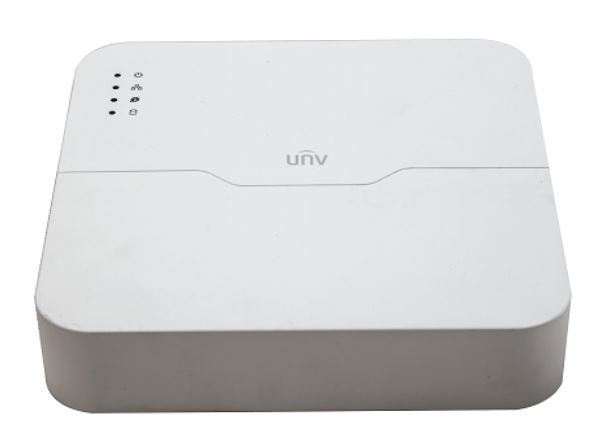

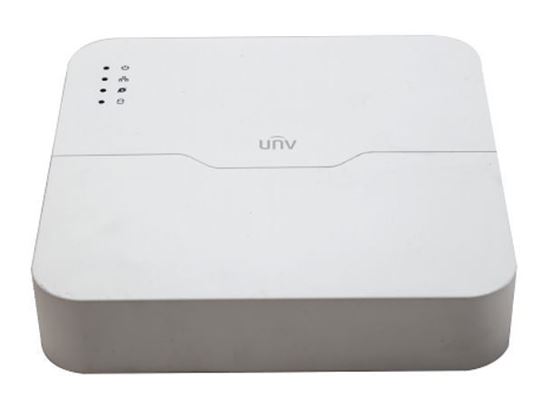

8Ch, PoE NVR, Plastic White

SKU: NVR301-08L-P8
P 0.00
  • Description

Key Features

4/8/16-channel input

Plug & Play with 4/8 independent PoE network interfaces

Third-party IP cameras supported with ONVIF conformance

Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160)

resolution Up to 8 Megapixels resolution recording

Support H.265/H.264 video formats

Accurate retrieval, instant playback

1 SATA HDD up to 8 TB

Support for P2P, UPnP, NTP, DHCP, PPPoE

Support for mobile client access

Specifications

Model

Video/Audio Input

IP Video Input : 8-ch

Two-way Audio Input : 1-ch, RCA

Network

Incoming Bandwidth : 60Mbps

Outgoing Bandwidth : 64Mbps

Remote Users : 128

Video/Audio Output
HDMI/VGA Output : HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720
/60Hz, 1024x768 /60Hz
VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output : 1-ch, RCA
Synchronous Playback : 4-ch

Decoding

Compression : H.265/H.264

Live view/ Playback :

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability : 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x

720p@30, 16 x D1

Hard Disk

SATA : 1 SATA interface

Capacity : up to 8TB for each disk

External Interface
Network Interface : 1 RJ-45 10M/100M self-adaptive Ethernet Interface

USB Interface : Rear panel:2 x USB2.0

PoE

Interface : 8 independent 100 Mbps PoE network interfaces

Max Power : Max 30W for single port / Max 108W in total ( 13.5W for each )

Supported Standard : IEEE 802.3at, IEEE 802.3af

General
Power Supply : 52V DC

Consumption ( without HDD ) : ≤ 8 W

Working Temperature : -10°C + 55°C ( +14°F +131°F )

Working Humidity : 10% 90%

Dimensions : 42 × 270 × 205mm ( 1.7" ×10.6" ×8.1" )

Weight ( without HDD ) : ≤ 0.68 Kg ( 1.50 lb )
