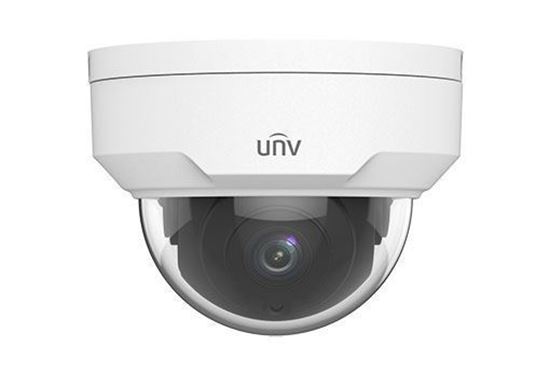

2MP Fixed Dome Network Camera

SKU: IPC322LR3-VSPF28-C
Free shipping
P 2,568.42
  • Description

Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
3D DNR (Digital Noise Reduction)

Compression
H.265, H.264, MJPEG
Triple streams

Network
ONVIF Conformance

Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP66

Specifications

Camera

Sensor : 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens : 4.0mm@F1.8
Angle of View(H) : 80.8°
Shutter : Auto/Manual, 1/6~1/100000 s
Min. Illumination : Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
IR Range : Up to 30m (98 ft) IR range
Day/Night : IR-cut filter with auto switch (ICR)
S/N : >52dB
WDR : Digital
Noise Reduction : 2D/3D

Video
Max. Resolution : 1920×1080
Video Compression : H.265, H.264, MJPEG
Frame Rate : 1080P (1920×1080): Max. 25 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 8 fps
Video Streaming : Triple
ROI : Supported
HLC : Supported
Evaluative Metering : Supported
OSD : Up to 8 OSDs
Motion Detection : Up to 2 areas
Privacy Mask : Up to 8 areas

Network
Protocols : L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration : ONVIF, API

Interface
Network : 1 RJ45 10M/100M Base-TX Ethernet

General
Power : 12 V DC, or PoE (IEEE802.3 af)/ Power consumption: Max 5.0W
Dimensions (L × W × H) : 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight : 0.25kg (0.55 lb)
Working Environment : -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection : IP66
